🔩 BGA Soldering Basics: A Beginner’s Guide to Ball Grid Array Soldering
BGA (Ball Grid Array) soldering may sound intimidating, but with the right tools and a little know-how, it’s completely manageable—even for electronics enthusiasts. Whether you’re repairing a laptop motherboard, a gaming console, or diving into small-scale electronics manufacturing, understanding the basics of BGA soldering is your first step to success.
Let’s break it all down in plain terms.
🧱 What Is a BGA (Ball Grid Array)?
A Ball Grid Array (BGA) is a type of surface-mount packaging used for integrated circuits (ICs). Instead of traditional pins or leads, a BGA component uses tiny solder balls on the underside to connect to the PCB (printed circuit board).
🔍 Key Features:
- High pin count in a compact space
- Better heat dissipation
- Improved electrical performance
Common devices using BGA: CPUs, GPUs, RAM chips, PMICs (power management), and other high-performance ICs.
🧰 Tools You Need for BGA Soldering
You can’t solder BGA chips with a basic iron—here’s what you’ll need:
🔧 Essential Tools:

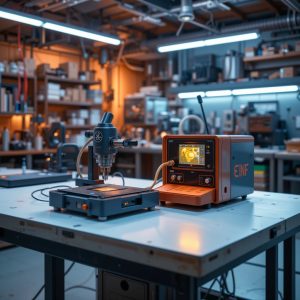

- BGA Rework Station (hot air, infrared, or hybrid)
- Microscope or digital inspection camera
- Flux (No-clean or rosin-based for reflow)
- Preheater or bottom heater
- Solder paste (or pre-balled chips)
- Solder wick and desoldering tools
- Tweezers and chip lifter
- PCB holder or clamp
- Reballing kit (stencils + solder balls) — for chip reuse
🔥 BGA Soldering Process – Step-by-Step
Here’s a simplified overview of how BGA soldering (or reballing) is typically done:
1. Remove the Chip
- Secure the board in a holder.
- Use the rework station to heat the chip evenly (follow a thermal profile).
- Lift the chip gently with tweezers once the solder melts.
2. Clean the Pads
- Use solder wick and flux to clean leftover solder from the board.
- Ensure pads are flat and shiny.
- Clean with isopropyl alcohol and a soft brush.
3. Reball the Chip (if reusing)
- Clean the old solder from the chip.
- Use a stencil and apply flux + solder balls.
- Heat evenly to reflow the balls into place.
(Alternatively, use a new chip with pre-applied solder balls.)
4. Align and Place the Chip
- Use a microscope or camera-assisted alignment tool.
- Carefully place the chip on the board, making sure the pads line up.
5. Reflow the Solder
- Apply the correct temperature curve: preheat → soak → reflow → cooldown
- Ensure even heating from both top and bottom to avoid warping.
6. Inspect the Work
- Use a microscope to check for bridging, cold joints, or misalignment.
- Optional: X-ray inspection (for pro setups), thermal camera for shorts.
đź’ˇ Pro Tips for BGA Soldering
- Use high-quality flux – It improves flow and reduces oxidation.
- Follow a thermal profile – Random heating can damage chips or PCBs.
- Don’t rush – Let the board heat evenly to prevent warping.
- Practice on dead boards – Learn without risking valuable hardware.
- Keep your workspace ESD-safe – Static damage is a silent killer.
🔄 Reballing vs Replacing
If a chip is good but the solder balls are damaged (due to overheating, drop damage, etc.), reballing is a cost-effective option.
If the chip is faulty (shorted internally, cracked die, etc.), replacing it is the only fix.
🛠️ Common Use Cases for BGA Soldering
- Laptop motherboard repairs (e.g., GPU, PCH, charging IC)
- Game console repairs (e.g., PS4/PS5 HDMI ICs, APU chips)
- Mobile phone logic board repair
- Small-run electronics manufacturing
📦 Conclusion
BGA soldering is a high-precision process, but it’s also an essential skill in modern electronics repair. With the right tools, a bit of patience, and a willingness to practice, you can master BGA work and unlock the ability to repair devices most people would throw away.
Whether you’re a technician looking to expand your services or a hobbyist eager to learn, BGA soldering is a game-changer worth adding to your skillset.
