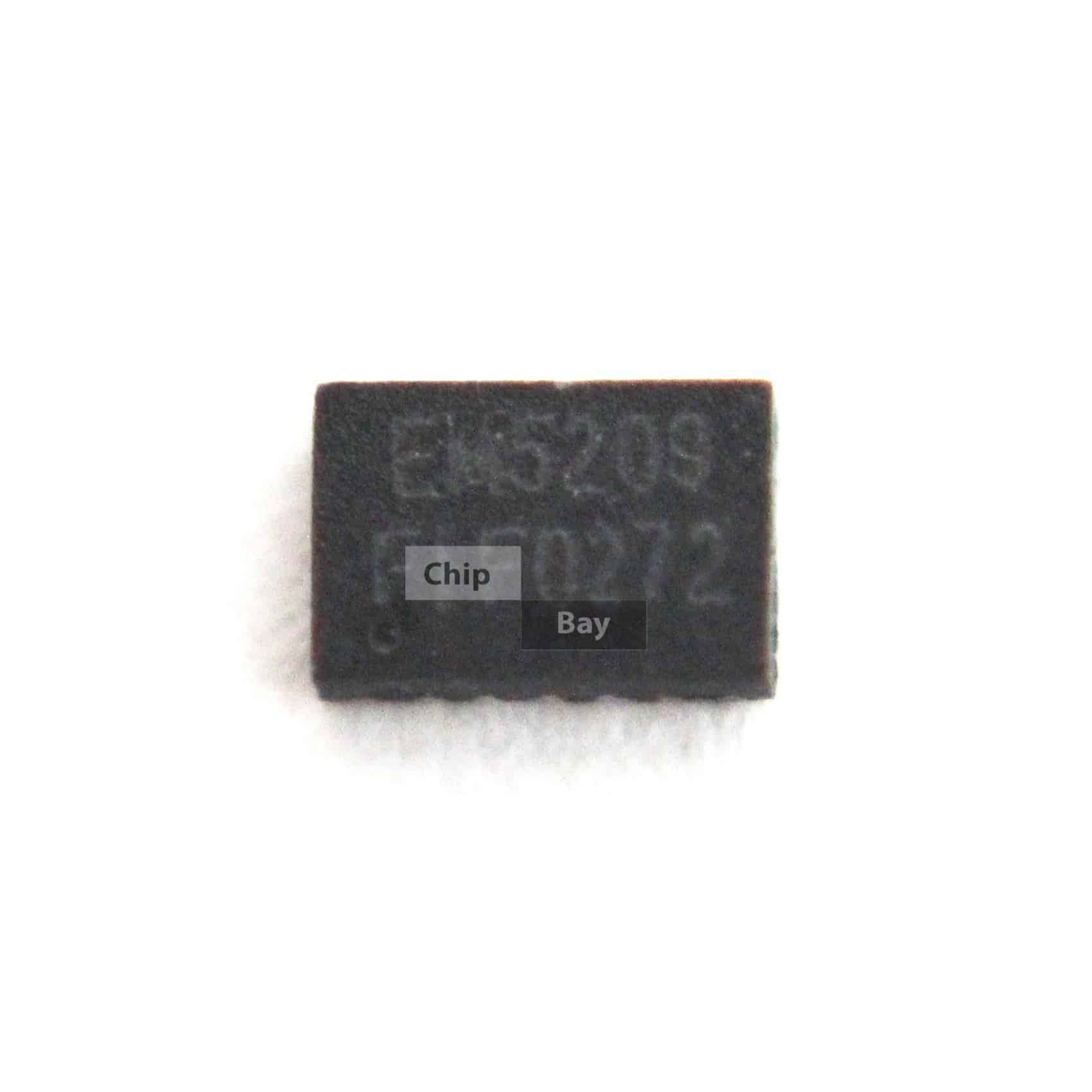

EM5209VF EM5209 Dual Channel Ultra-Low Resistance Switch IC

£6.99 inc. VAT

Condition: New

In stock

Quantity:

SKU: 112999019256 Category: Tags: ,

Description

Please note fitting require good skills and equipment.

Item is not refundable if been used, please check chip before fitting.



General Description

The EM5209 is a small, ultra-low RON, dual channel load switch with controlled turn on. The device contains two N-channel MOSFETs that can operate over an input voltage range of 0.8V to 5.5V and can support a maximum continuous current of 6A per channel. Each switch is independently controlled by an on/off input (ON1 and ON2), which is capable of interfacing directly with low-voltage control signals. In EM5209, a 220-Ω on-chip load resistor is added for quick output discharge when switch is turned off.

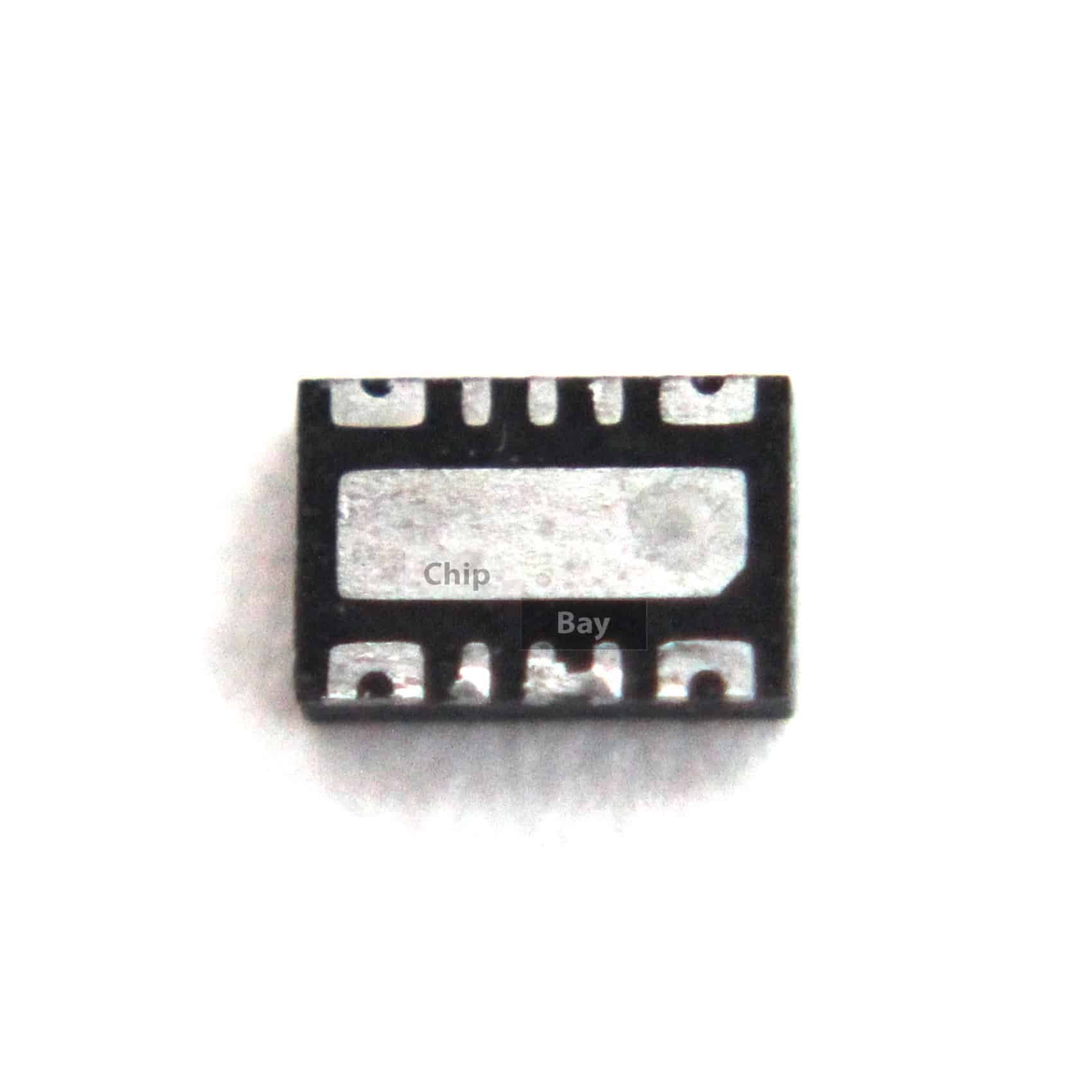

The EM5209 is available in a small, space-saving DFN3X2 package with integrated thermal pad allowing for high power dissipation.
