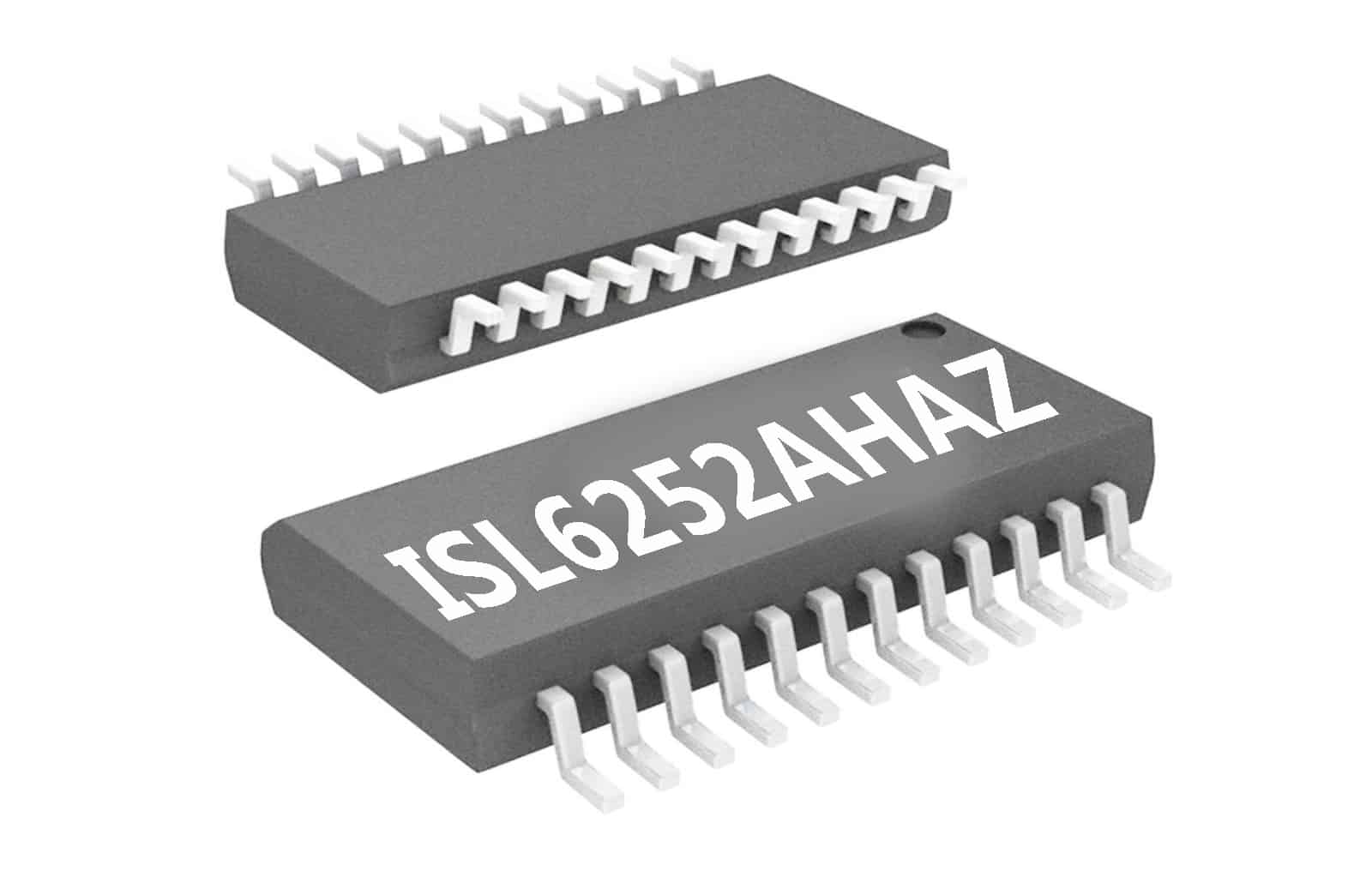

Intersil ISL6252 INTEGRATED CIRCUIT ISL6252AHAZ SMD SSOP 24pin Power IC Chip

£2.29

Condition: New

In stock

Quantity:

SKU: 121317689048 Category:

Description

Voltage – Supply 7 V ~ 25 V
Operating Temperature -10°C ~ 100°C
Mounting Type Surface Mount
Package / Case 24-SSOP (0.154″, 3.90mm Width)
Supplier Device Package 24-QSOP

Highly Integrated Battery Charger Controller for Notebook Computers

The ISL6252, ISL6252A is a highly integrated battery charger controller for Li-ion/Li-ion polymer batteries. High Efficiency is
achieved by a synchronous buck topology. The low side MOSFET emulates a diode at light loads to improve the light
load efficiency and prevent system bus boosting. The constant output voltage can be selected for 2, 3 and 4
series Li-ion cells with 0.5% accuracy over-temperature. It can also be programmed between 4.2V + 5%/cell and
4.2V – 5%/cell to optimize battery capacity. When supplying the load and battery charger simultaneously, the input current
limit for the AC adapter is programmable to within 3% accuracy to avoid overloading the AC adapter, and to allow
the system to make efficient use of available adapter power for charging. It also has a wide range of programmable
charging current. The ISL6252, ISL6252A provides outputs that are used to monitor the current drawn from the AC
adapter, and monitor for the presence of an AC adapter. The ISL6252, ISL6252A automatically transitions from regulating
current mode to regulating voltage mode.
