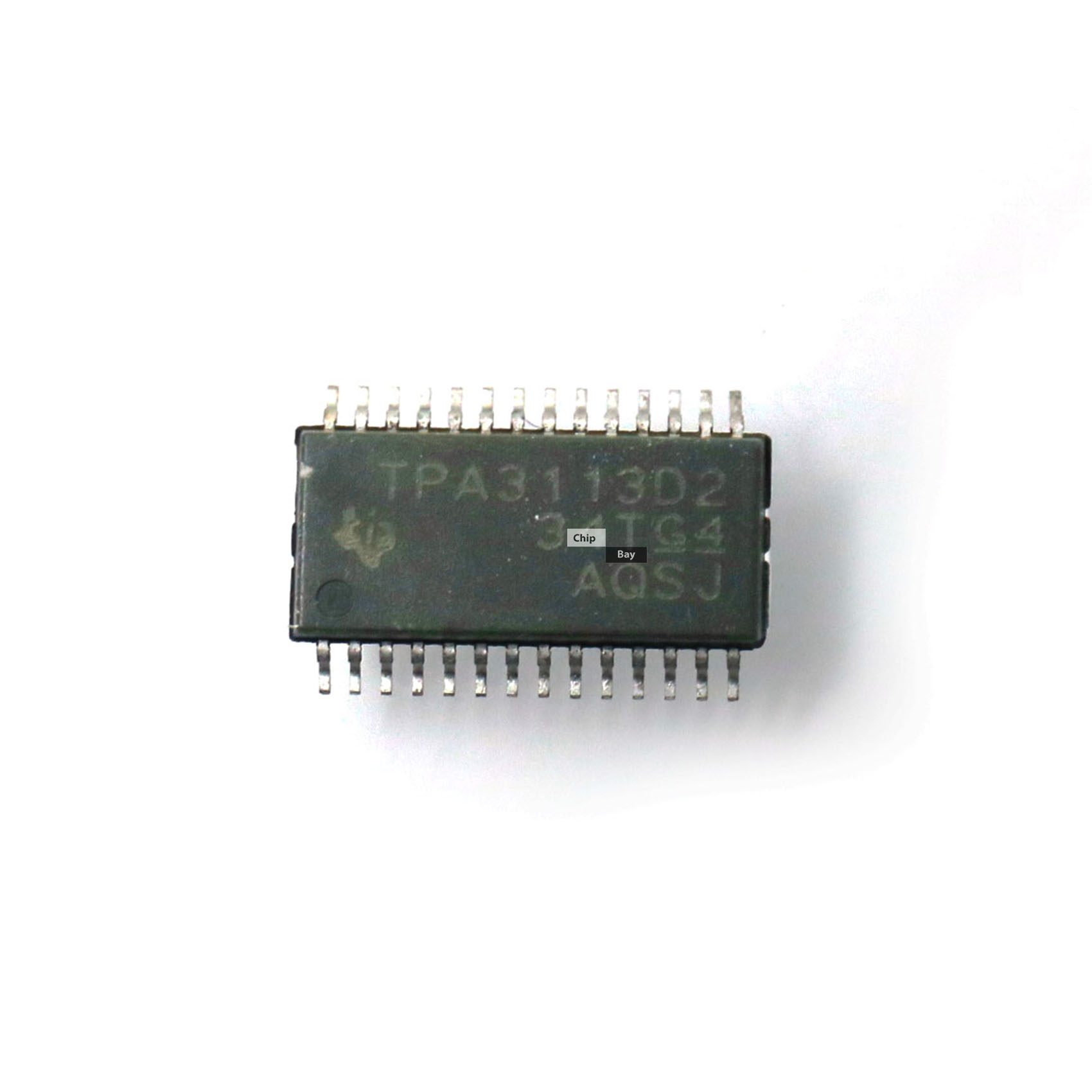

TEXAS INSTRUMENTS TPA3113D2PWPR TPA3113D2 HTSOP-28 audio amplifier IC Chip

£3.49

Condition: New

Only 2 item(s) left in stock.
+
  •   Size Guide

    Size Guide

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    2XS 32 26 32
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

  •  Delivery & Return

    Delivery

    We ship worldwide (except batteries). Order will be shipped by shipping method chosen at the checkout. Always free shipping for multiple item orders over ÂŁ200. During holidays and summer periods the delivery time may be longer than normal.

    Return

    Chipbay will accept exchanges and returns of purchased goods within 30 days of the date of purchase (14 days during the sales period). Your return will usually be processed within 1-3 days. We’ll send you a Return Notification email to notify you once the return has been completed. Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    Give us a shout if you have any other questions and/or concerns.
    Email: [email protected]
    Phone: +44 1733806223
  ... people are viewing this right now

  Share
Guaranteed Safe CheckoutTrust

Size: 4.4mm x 9.7mm

The TPA3113D2 is a 6-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. Advanced EMI Suppression Technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ speaker protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a virtual voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs.

  • 6-W/ch into an 8-Ω Loads at 10% THD+N From a
    10-V Supply
  • 12-W into a 4-Ω Mono Load at 10% THD+N From
    a 10-V Supply
  • 87% Efficient Class-D Operation Eliminates Need
    for Heat Sinks
  • Wide Supply Voltage Range Allows Operation
    from 8 V to 26 V
  • Filter-Free Operation
  • SpeakerGuard Speaker Protection Includes
    Adjustable Power Limiter Plus DC Protection
  • Flow-Through Pinout Facilitates Easy Board
    Layout
  • Robust Pin-to-Pin Short-Circuit Protection and
    Thermal Protection With Auto Recovery Option
  • Excellent THD+N and Pop-Free Performance
  • Four Selectable, Fixed Gain Settings
  • Differential Inputs
  • APPLICATIONS
    • Televisions
    • Consumer Audio Equipment
    • Monitors
