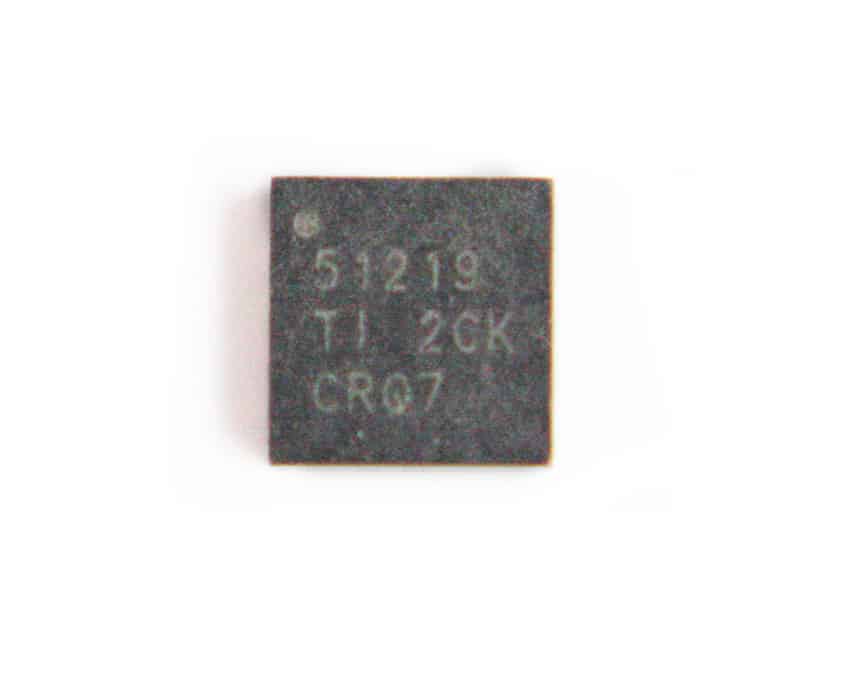

TEXTAS INSTRUMENTS TPS51219 TI 51219 Single Sync Step-Down Controller

£3.99

Condition: New



TPS51219 Datasheet

Out of stock

  •   Size Guide

    Size Guide

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    2XS 32 26 32
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

  •  Delivery & Return

    Delivery

    We ship worldwide (except batteries). Order will be shipped by shipping method chosen at the checkout. Always free shipping for multiple item orders over ÂŁ200. During holidays and summer periods the delivery time may be longer than normal.

    Return

    Chipbay will accept exchanges and returns of purchased goods within 30 days of the date of purchase (14 days during the sales period). Your return will usually be processed within 1-3 days. We’ll send you a Return Notification email to notify you once the return has been completed. Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    Give us a shout if you have any other questions and/or concerns.
    Email: [email protected]
    Phone: +44 1733806223
  ... people are viewing this right now

  Share
Guaranteed Safe CheckoutTrust

High Performance, Single Sync Step-Down Controller with Differential Voltage Feedback

      The TPS51219 is a small-sized single buck controller with adaptive on-time control. It provides a choice of control modes (D-CAP™ or D-CAP2™) to meet a wide range of system requirements. It is designed for tight DC regulation requirements such as the VCCIO application for Intel notebooks. The performance and flexibility of the TPS51219 makes it suitable for low output voltage, high current, PC system power rails and similar point-of-load (POL) power supplies. Differential voltage feedback and the voltage compensation function combine to provide high precision power to load devices.

A small package, fixed voltage options and minimal external component count saves cost and space, while a dedicated EN pin and pre-set frequency selections minimize design effort. The skip-mode at light load condition, strong gate drivers, and low-side FET RDS(on) current sensing provides high efficiency operation over a broad load range. The external resistor current sense option enables accurate current sensing. The conversion input voltage (the high-side FET drain voltage) ranges from 3 V to 28 V and output voltage ranges from 0.5 V to 2.0 V. The device requires an external 5-V supply.

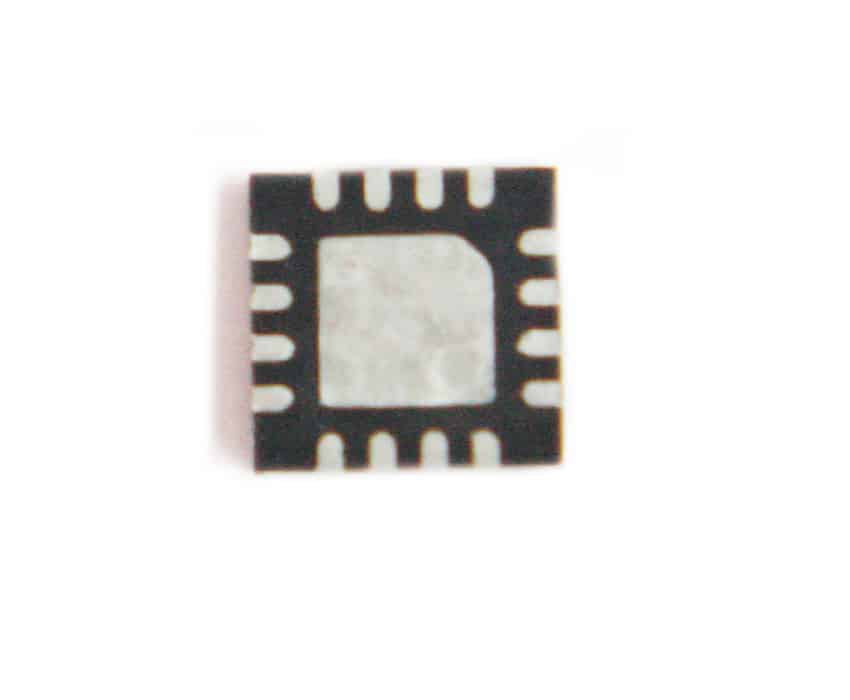

The TPS51219 is available in a 16-pin, QFN package and is specified for ambient temperature from -40°C to 85°C.

16PIN
