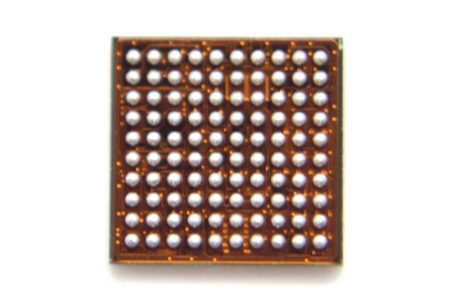

Maxim MAX15053EWL MAX15053 High Efficiency Switching Regulator IC Chip

£5.49

Condition: New

Only 1 item(s) left in stock.
+
  •   Size Guide

    Size Guide

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    2XS 32 26 32
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42

    All measurements are in INCHES

    and may vary a half inch in either direction.

    Size Chest Waist Hips
    XS 34 28 34
    S 36 30 36
    M 38 32 38
    L 40 34 40
    XL 42 36 42
    2XL 44 38 44

    All measurements are in INCHES

    and may vary a half inch in either direction.

  •  Delivery & Return

    Delivery

    We ship worldwide (except batteries). Order will be shipped by shipping method chosen at the checkout. Always free shipping for multiple item orders over ÂŁ200. During holidays and summer periods the delivery time may be longer than normal.

    Return

    Chipbay will accept exchanges and returns of purchased goods within 30 days of the date of purchase (14 days during the sales period). Your return will usually be processed within 1-3 days. We’ll send you a Return Notification email to notify you once the return has been completed. Please allow 1-3 business days for refunds to be received to the original form of payment once the return has been processed.

    Help

    Give us a shout if you have any other questions and/or concerns.
    Email: [email protected]
    Phone: +44 1733806223
  ... people are viewing this right now

  Share
Guaranteed Safe CheckoutTrust

Condition: New

Please note fitting require good skills and equipment.

Item is not refundable if been used, please check chip before fitting.



General Description

The MAX15053 high-efficiency, current-mode, synchronous step-down switching regulator with integrated power switches delivers up to 2A of output current. The device operates from 2.7V to 5.5V and provides an output voltage from 0.6V up to 94% of the input voltage, making the device ideal for distributed power systems, portable devices, and preregulation applications.
The MAX15053 utilizes a current-mode control architecture with a high gain transconductance error amplifier. The current-mode control architecture facilitates easy compensation design and ensures cycle-by-cycle current limit with fast response to line and load transients.
The MAX15053 offers selectable skip-mode functionality to reduce current consumption and achieve a higher
efficiency at light output load. The low RDS(ON) integratedswitches ensure high efficiency at heavy loads while minimizing critical inductances, making the layout design a much simpler task with respect to discrete solutions. Utilizing a simple layout and footprint assures first-pass success in new designs.
The MAX15053 features a 1MHz, factory-trimmed, fixedfrequency PWM mode operation. The high switching frequency, along with the PWM current-mode architecture, allows for a compact, all-ceramic capacitor design. The MAX15053 offers a capacitor-programmable softstart reducing inrush current, startup into PREBIAS operations, and a PGOOD open-drain output that can be used as an interrupt and for power sequencing.
The MAX15053 is available in a 9-bump (3 x 3 array), 1.5mm x 1.5mm WLP package and is specified over the -40NC to +85NC temperature range.

SKU: 112998851669 Category: Tags: ,
